Eracore got you covered!
Speak with our Principal Engineer
Trusted by the best
We design independent A/B power paths, dual-fed equipment, and isolated routing so the system stays online even during faults, maintenance, or unexpected load shifts.
We plan tray layouts, pathway spacing, and separation zones that keep heavy cable volumes organized, accessible, and easy for field teams to install or expand later.
We model conductor spacing, equipment placement, and load paths with heat behavior in mind to avoid hotspots and maintain stable performance under continuous operation.
We structure distribution paths, redundancy levels, and equipment access to align with Tier I–IV requirements so the build meets certification standards without rework.
We create clean routing channels and dedicated clearance areas to prevent clashes, reduce electromagnetic noise, and keep sensitive electrical systems operating reliably.
At Eracore, we’ve delivered BIM for high-density data centers supporting global tech leaders like Amazon and Meta where precision isn’t optional.
Want to see how we’d model your gear room or tray path?
We don’t just receive your DWGs, we ask how this is going to be built on-site. Our modeling starts with the end install in mind, not just geometry.
We coordinate core locations, sleeves, and embeds with actual structural and MEP inputs. The result is pour-ready, conflict-free planning before the concrete goes in.
Panel layouts are designed with proper access, swing clearances, and code spacing baked in. No overlaps, no last-minute shifting of critical equipment.

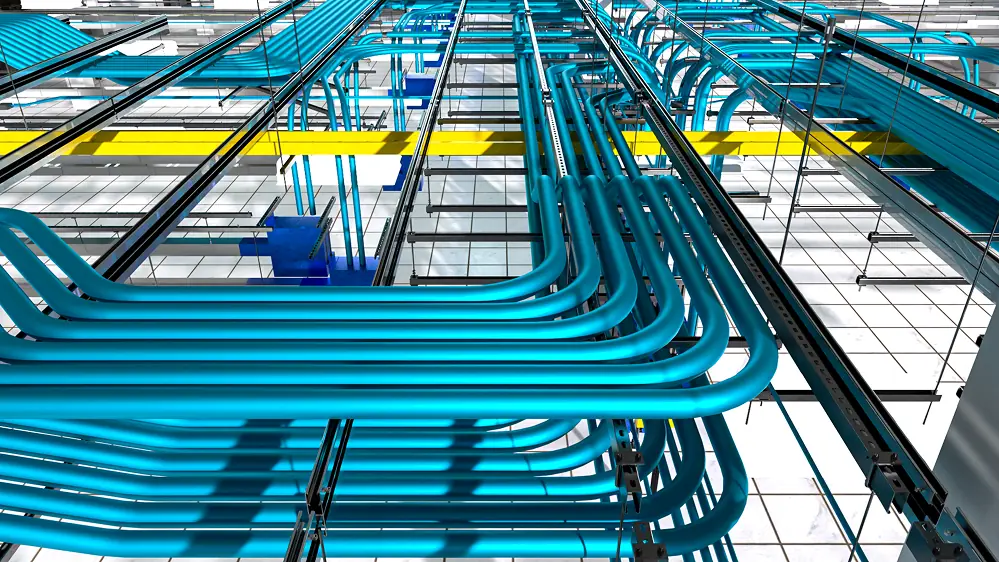

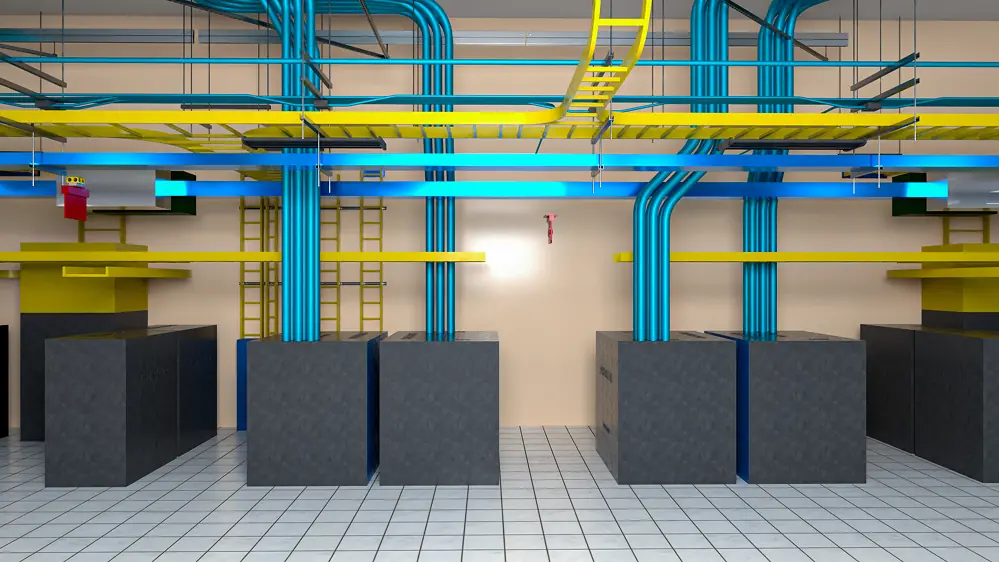

Overhead systems i.e. trays, ducts, conduits are routed in install sequence, avoiding late-stage clashes. Everything is modeled to fit above ceiling the first time.
We deliver LOD 400 BIM with tagged elements, cut sheets, and hanger plans ready for prefab. Your crews can build directly from the model with no guesswork.
Our team works zone-by-zone with your BIM and VDC leads for real-time updates. Layout changes and RFIs are resolved directly in the model before they reach the field.
A closer look at builds where collaboration ran deep and precision paid off, turning complex scopes into field-ready success stories.
Sparks, NV
437,001 sq ft sq ft
3
"They understood the challenges of data center construction and delivered exactly what was promised."
Sandston, VA
215,446 sq ft sq ft
2
"One of the easiest BIM teams we've worked with. Responsive, organized, and dependable."
New Albany, OH
196,019 sq ft sq ft
2
"They felt less like a vendor and more like part of our project team."
Manassas, VA
243,459 sq ft sq ft
2
"Fast responses, good communication, and quality models. No complaints from our side."
Manassas, VA
813,978 sq ft sq ft
2
"We've worked with larger firms, but the attention to detail from Eracore was better than most."

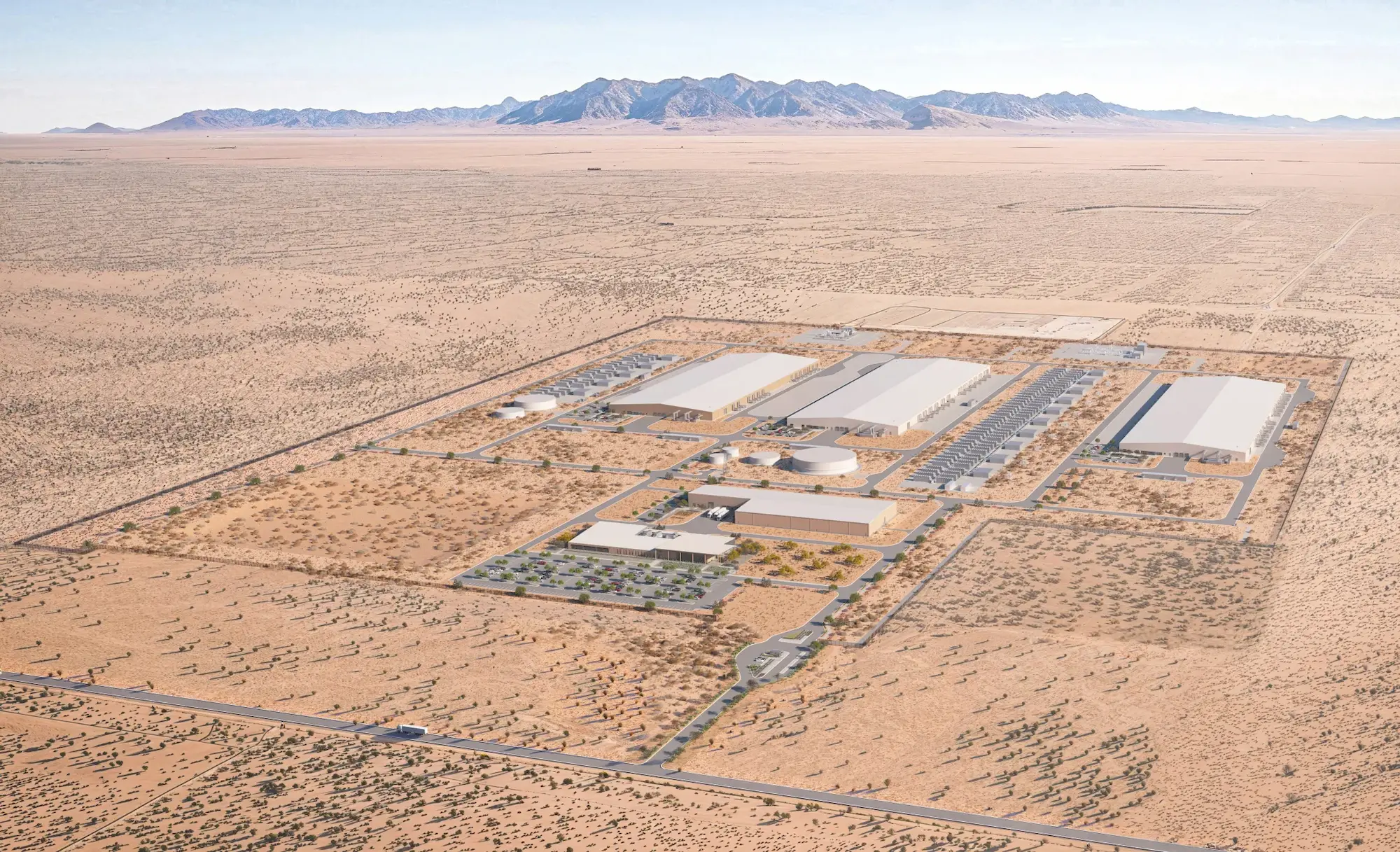

El Paso, TX
347,696 sq ft sq ft
1
"Job well done. The models were accurate, the coordination was solid, and the project stayed on track."
Electrical, mechanical, and plumbing of BIM services as well as clash detection and coordination are usually services required in the design of a data center. These models are constructed to LOD 400 in order to be used in construction and prefabrication. Services provided frequently are with conduit design, cable trays, and equipment rooms models.
BIM cost for data center projects usually ranges from 1–3% of total construction cost depending on scope and LOD. Although upfront expenditure differs, the ROI is high, because of less delays, and less rework. Precise BIM is time and cost-efficient during crucial constructions.
In mission-critical facilities, BIM makes precision a given at the front end that narrows risk where downtime is not an option. It allows a clash to be detected early on BIM and electrical and MEP system clearances to be justified. In electrical BIM services, planning is done in advance before constructing.
The key tool to be used in modelling is Revit, and in clashing detection and coordination, the main tool is to be Navisworks. The BIM 360 or ACC enables the cloud-based collaboration and issue tracking. Other detailed learning and fabrication tools such as AutoCAD MEP, SysQue, and Fab Parts tools are employed.
Yes, BIM offers 3-dimensional modeling, smart data and multi-trade alignment benefits that CAD does not offer. BIM helps to identify problems in the field prior to installation and facilitating the construction planning. It assists in post-handover management of timelines and systems as well.
BIM clash detection services identify spatial conflicts before they reach the field so that last-minute changes can be avoided. BIM coordination of data center projects guarantees that the trades are aligned and installation buildable. There are the reduced number of RFIs and the project delivery.
Absolutely. With BIM prefabrication services, a suitable layout of conduit racks, ductwork and hanger assemblies can be achieved. Electrical BIM for data centers provides accurate lengths, supports, and routing of rods. This brings about cleaner installs and reduced changes on site.
